DCE稱重傳感器詳細信息請點擊：英國LCMsystems稱重傳感器獲取最新報價！��！
產品品牌：英國LCMsystems（LOADCELL）
產品類別：不銹鋼拉壓式雙向受力
產品系列：LCM拉壓力DCE系列稱重傳感器（可測力）
產品型號：DCE-100N,DCE-250N,DCE-500N,DCE-750N,DCE-1kN,DCE-2kN.DCE-5kN,5kN,DCE-7.5kN,DCE-10kN,DCE-25kN,DCE-50kN
英國LCMsystems DCE稱重傳感器特點
▲范圍100N到50kN
▲不銹鋼材質
▲環保密封等級達IP65
▲特殊尺寸和可用范圍
▲可用不同的安裝選項
▲更加合理化可用選項輸出
產品描述：在LCM系統DCE稱重傳感器已被開發用于需要拉伸和壓縮力，在空間有限的測量應用
與大多數LCM產品有特殊的變體可用于本產品。流行的變體包括不同的螺紋尺寸，集成連接器和高溫版本。
英國LCMsystems DCE稱重傳感器技術指標
|
Rated Load
|
100, 250, 500, 750N
1, 2.5, 5, 7.5, 10, 25, 50kN
|
|
Proof Load
|
150% of Rated Load
|
|
Ultimate Breaking Load
|
> 300% of Rated Load
|
|
Maximum Side Load
|
10% of Rated Load
|
|
Output
|
1.5 mV/V at Rated Load (nominal)
|
|
Non-Linearity
|
< ±0.25% of Rated Load
|
|
Non-Repeatability
|
< ±0.10% of Rated Load
|
|
Excitation Voltage
|
10vdc recommended, 15vdc maximum
|
|
Bridge Resistance
|
350Ω
|
|
Insulation Resistance
|
> 500MΩ @ 500vdc
|
|
Operating Temperature Range
|
-20 to +70°C
|
|
Compensated Temperature Range
|
-10 to +50°C
|
|
Zero Temperature Coefficient
|
< ±0.010% of Rated Load/°C
|
|
Span Temperature Coefficient
|
< ±0.010% of Rated Load/°C
|
|
Environmental Protection Level
|
IP65
|
|
Connection Type
|
2 metres 4-core screened PVC cable
|
|
Wiring Connections
|
|
Red +ve supply
|
Blue -ve supply
|
|
Green +ve signal
|
Yellow -ve signal
|
|
|
Connection Type
|
Special ranges and sizes available
Rationalised output available
|

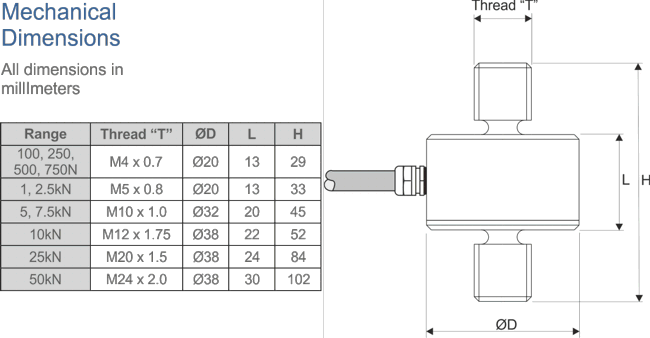

英國LCMsystems DCE稱重傳感器技術尺寸
Ranges 100N to 50kN
Stainless Steel construction
Environmentally Sealed to IP65
Special Sizes and ranges available
Different mounting options available
Rationalised Output Option Available
The DCE series load cells are based on the conventional low profile or pancake load cell principle. The internal construction is a shear web design, offering high natural frequency, low deflection and excellent resistance to side and torsion forces.
The DCE is constructed from stainless steel offering excellent corrosion resistance. There is an optional mounting base available, which is required if the load cell is to be used in tension. The mounting base is also constructed from stainless steel.
The standard load cell is supplied with an integral MIL spec. connector and supplied with a mating connector.
The DCE is ideally suited to many testing applications, where high stability and low height are essential requirements.
The DCE can be supplied with any of LCM Systems range of load cell instrumentation, and can be supplied calibrated as a complete ready to go system.
